    General Condition:

    The body is in overall good condition, with minor signs of previous use.

    The original leather covering is in very good condition.

    The focusing hood works great as it should.

    The focussing screen  has been replaced by a new BrightScreen MPD with line spacing pattern. The MPD screen is best with eye level finders, geometric subjects such as architecture, and for general photography. We find it very comfortable to use even in bright sunny day.

    Both  lenses are in good condition without fungi, haze or  separation.

    There are some light cleaning marks on the taking lens that have no effect on the picture quality (check the picture gallery taken with the camera in our final test)

    The Synchro-compur shutter has been cleaned and re-lubricated  and now works very well at all speeds.

    The self timer is operational .

    The flash connection has been tested and works fine.

    What we've done:

    We did a full overhaul of the camera.

    The front and the optical elements have been disassembled and cleaned up.

    The cranking system  has been fully overhauled, cleaned up, lubricated and tested.

    Same for the focussing sytem which has been adjusted after full overhaul, cleaning and lubrication.

    We fully checked the camera and all movements are  fine.

    IMPORTANT: IF YOU ARE NOT FAMILIAR WITH ROLLEIFLEX AUTOMAT, HERE IS A LINK ON HOW TO LOAD THE FILM.  PLEASE READ CAREFULLY.

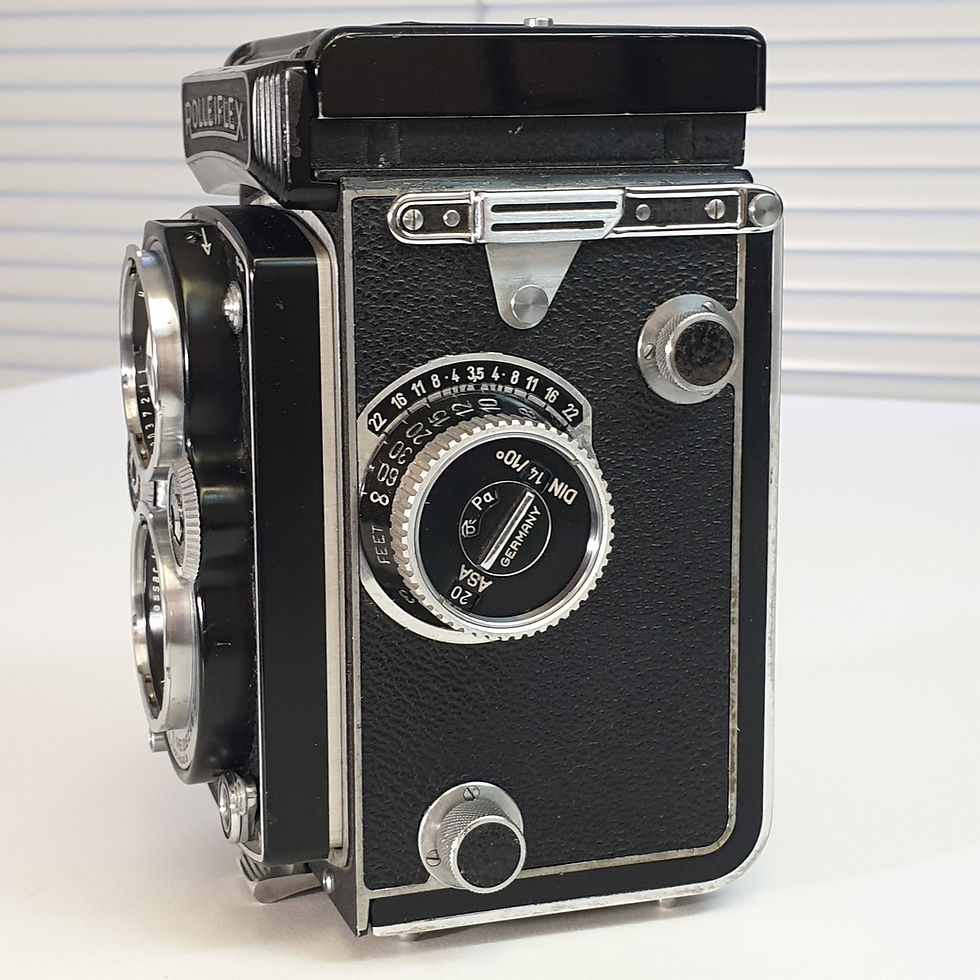

    Rolleiflex 3.5B MX-EVS AUTOMAT type K4B

    SKU: SN1715680
    £850.00Price
    Only 1 left in stock
    • Serial Number 1715680

      Production : from 1954 to 1956, about 94.000 units

      Format : 12 exposures of 6 x 6 cm on 120 type roll film.
      Furthermore a Plate adapter for sheet film and a Rolleikin adapter for 35mm film cartridges can be used.

      Taking lens:
      Zeiss Oberkochen Opton Tessar 1:3.5 f=75mm, Coated.
      Viewing lens: 1:2.8 f=75mm, coated
      Shutter: Synchro-Compur MX CR00 leaf shutter. Speeds 1 to 1/500 sec. and B.
      Flash synchronization : Sync socket on front panel. M and X synchronization

      Filter Bayonet : Both lenses, size 1.
      Parallax error correction.
      Selftimer

      Exposure adjustments now with an Exposure Value Scale (EVS)
      Switch to overrule the Double Exposure Prevention
      Color Lacquer : Black
      Color Leatherette : Black

      Memo disc on Focus knob
      Dimensions WxDxH: 99 x 96 x 146 mm
      Weight: 980 grams

      Use of Rolleifix (tripod attachment) possible
